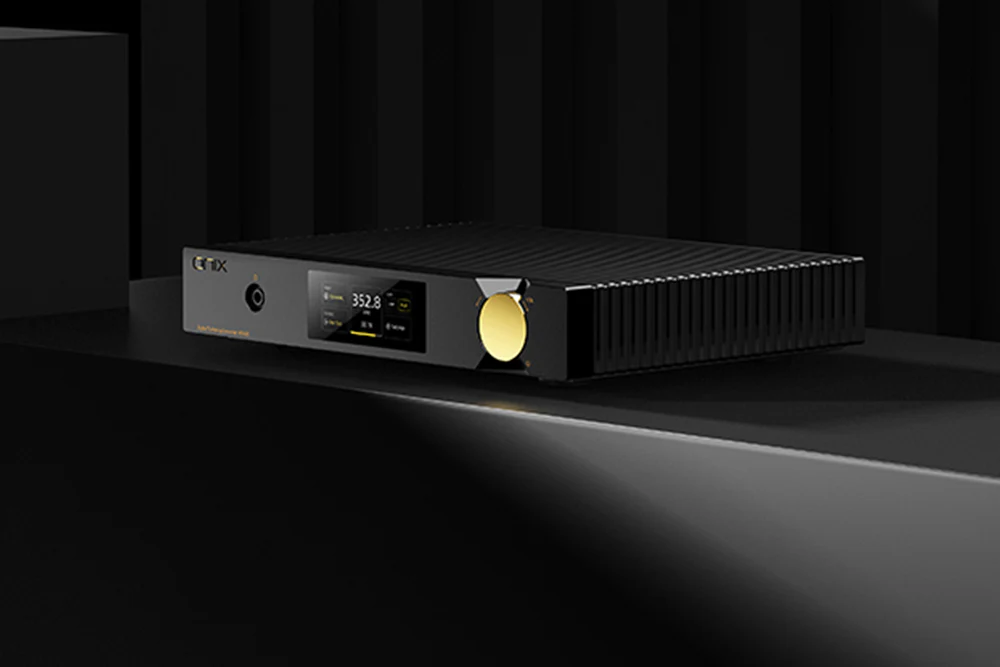

ONIX Zenith XDA20 Dual ES9039PRO Desktop DAC & Headphone Amplifier
ONIX Zenith XDA20 Dual ES9039PRO Desktop DAC & Headphone Amplifier
Quantity
Email : Sales@greshamtech.co.nz
-
Detail
Dual ES9039PRO DAC chips, flagship audio core
XDA20 adopts the flagship ESS batongdao chip ES9039PRO used in the Miracle series, with dual DACs and high performance and specifications, supporting 768kHz/32-bit and DSD512.Dual TALEMA transformer power supply, imported audio dedicated iron core, powerful filtering capacitor
XDA20 is powered by 15W+25W dual TALEMA transformers, providing strong and stable power supply. The imported audio specific iron core is pure and clear; Four 3300 μ F/63V VISHAY capacitors are used as power filters for stronger power supply.Supports multiple input/output methods and adapts to different devices

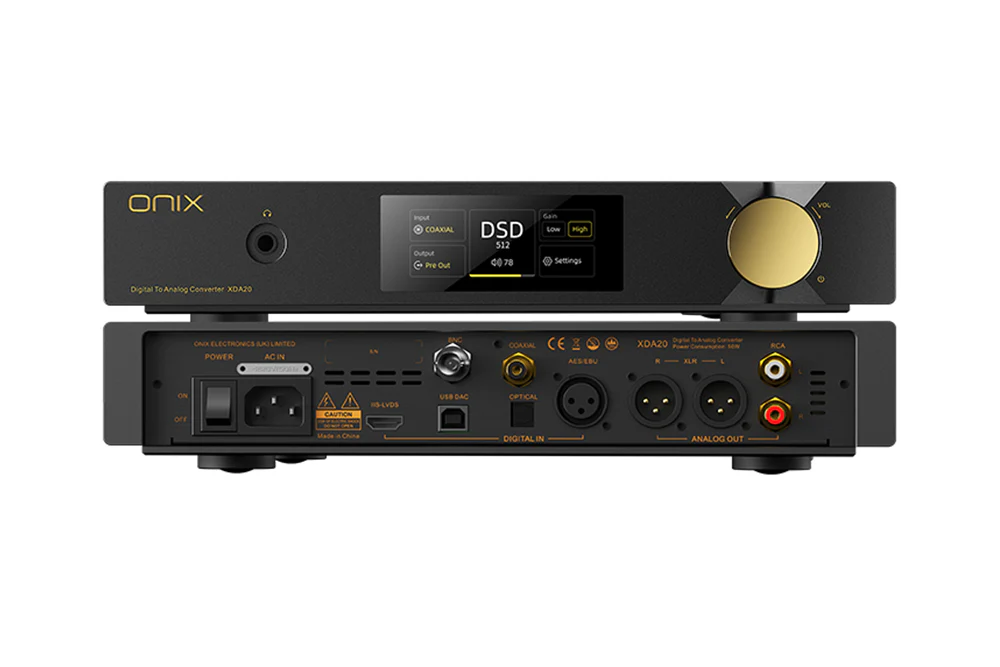

Digital inputs: COAXIAL/OPTIC/BNC coaxial/AES EBU/I ² S/USB DAC
Line output: RCA/XLR
Earphone output: 6.35mm
*Digital input support specifications:
SPDIF input: PCM: 192kHz/24bit, DSD: DOP64
I ² S input: PCM: 768kHz/32-bit, DSD: DSD512
USB DAC input: PCM: 768kHz/32-bit, DSD: DSD512CNC machining of aluminum alloy body, precision machining for stable shock absorption
XDA20 adopts CNC Unibody integrated processing aluminum alloy chassis, exquisite craftsmanship, stable bodySelf developed 'Brighton' efficient I/V architecture
XDA20 adopts ONIX's self-developed 'Brighton' high-efficiency I/V architecture, using eight OPA1611 operational amplifiers, with high conversion efficiency and solid and delicate sound.Efficient headphone amplifier circuit, supporting 6.35mm headphone output
XDA20 is equipped with OPA1612 high current headphone amplifier and a specially designed high-performance headphone amplifier circuit, with an output power of up to 1620mW@32 Ω.3.4-inch touch color screen, Zenith series UI design

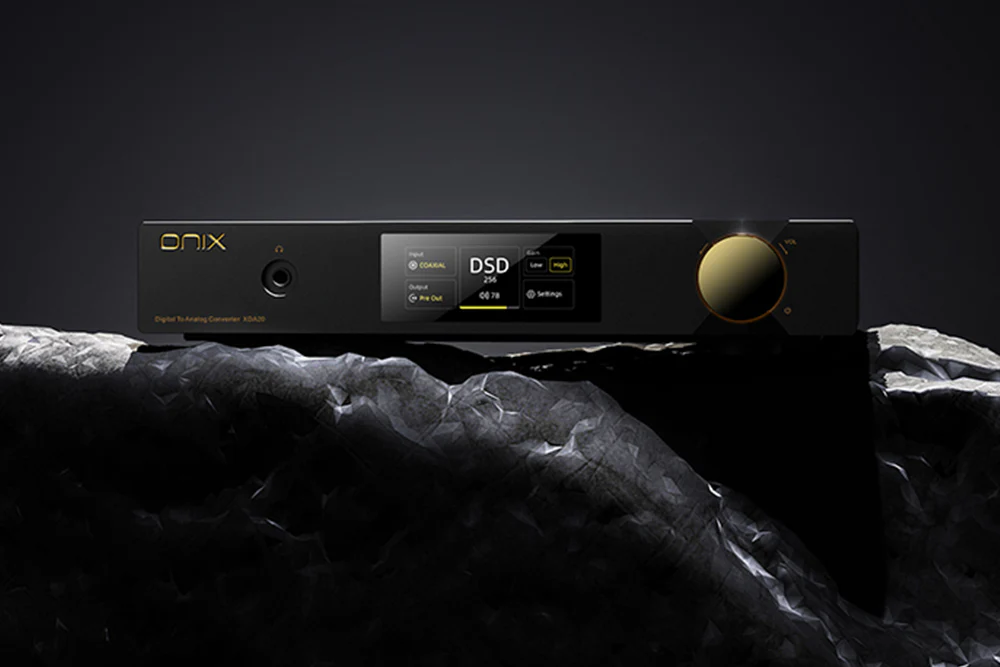

XDA20 is equipped with a 3.4-inch touch color screen, which can display various contents and support multiple function settings; Adopting the design language of Zenith XST20 family, simple design, elegant style.
-
